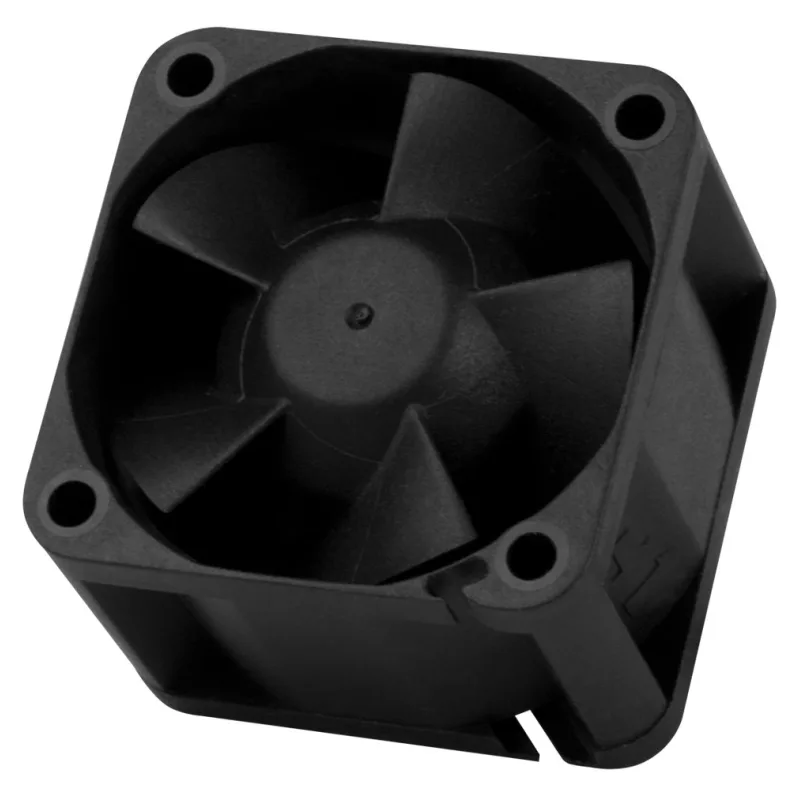

ARCTIC S4028-6K (40x28mm DC Fan for server) ACFAN00185A

S4028-6K 40 mm Server Fan DESIGNED FOR CONTINUOUS OPERATION The impeller of the S4028-6K is held in place by two ball bearings and is therefore particularly durable and less sensitive to external influences such as heat and dust. With its 6000 rpm max, it offers a good balance between cooling power and noise. FULL CONTROL WITH A WIDE SPEED RANGE The S4028-6K has a very wide speed range that can be regulated via PWM and voltage.

WIDE RANGE OF APPLICATIONS The S4028-6K fits into 1U server cases and can serve as a replacement fan for routers, switches and NAS. HIGH AIRFLOW AND STATIC PRESSURE With a static pressure of 4.2 mm/H2O and a maximum airflow of 12.06 m3/h, the S4028-6K is a true all-rounder and is suitable as both a radiator and case fan. It can also be used for other products such as DVRs, mini PCs, HTPCs, hard drive enclosures and 3D printers.

FLEXIBLE CONNECTION OPTIONS The fan has a standard 4-pin fan connector and can also be connected to and controlled on 2-pin or 3-pin headers, while the 40cm cable allows a lot of flexibility in positioning. General data Performance Fan Speed: 250 - 6000 rpm Airflow: 7.1 CFM / 12.06 m3/h Speed Control: Pulse Width Modulation – PWM Static Pressure: 4.2 mm H2O Fan Fan Frame: Standard Connector: 2510 4-Pin Fan-Connector Fan Bearing: Dual Ball Bearing Operating Ambient Temperature: 0 - 40 °C Electric Characteristics: ¨ Starting Voltage: 4.5 V Current/ Voltage: 0.1 A/ 12.0 V DC Cable Lenght: 400 mm Size & Weight ¨ Length: 40 mm Width: 40 mm Height: 28 mm Weight: 40 g Packaging Width: 33 mm Height: 57 mm Length: 45 mm Weight: 0.048 kg
